charge
Receives the charge request as a typed Charge@1.
IN PRACTICE / PAYMENTS
Payments & stateful flows
Money paths have to be legible.
Read the manifest

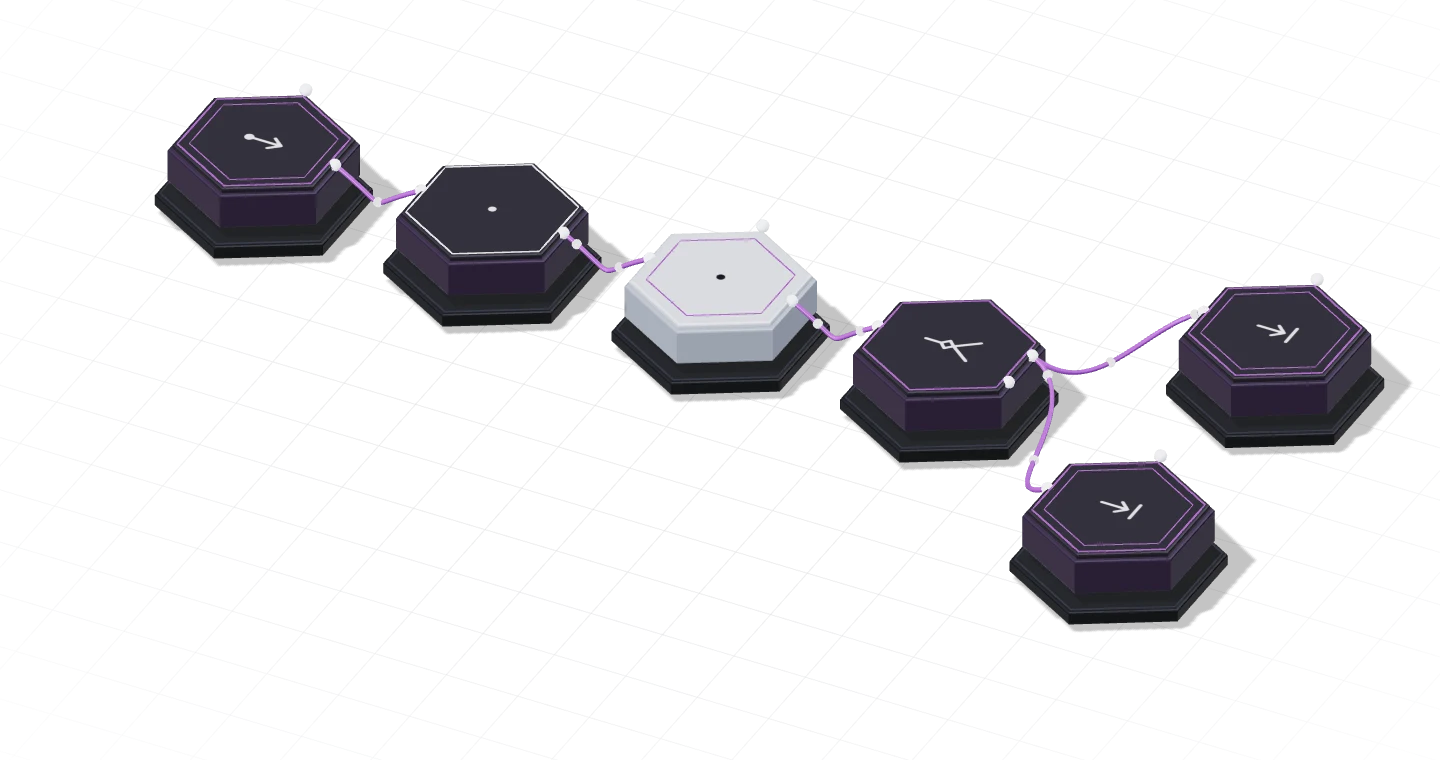

payments.bloccs06 NODES / DIRECTED FLOW
THE ARCHITECTURE
Every hop has
a responsibility.
bloccs lays the flow out as a typed graph: validate and dedupe before anything moves, branch on state, then capture and book the ledger as separate supervised sinks. Idempotency and the DB/HTTP boundaries are declared, so a retry can't double-charge and a stray effect can't compile.
Implementation status
Where this stands today: idempotency, DB reads and writes, outbound capture, and supervised recovery are all shipped in 0.8 — the core of this flow runs on real adapters. As with any source, charge is fed by your web layer; bloccs doesn't serve HTTP itself.
SOURCE OF TRUTH
From shape
to source.
The network is declared in TOML. Compile it with its referenced node manifests and bloccs checks the wiring, schemas, and capabilities before emitting a Broadway supervision tree.
COMPILE
mix bloccs.compile
Node implementations live in the referenced nodes/*.bloccs files.
payments.bloccs
[network]
id = "payments"
version = "0.1.0"
runtime = "beam"
[nodes]
charge = { use = "nodes/charge.bloccs" }
validate = { use = "nodes/validate.bloccs" }
dedupe = { use = "nodes/dedupe.bloccs" }
branch = { use = "nodes/branch.bloccs" }
capture = { use = "nodes/capture.bloccs" }
ledger = { use = "nodes/ledger.bloccs" }
[[edges]]
from = "charge.created"
to = "validate.charge"
[[edges]]
from = "validate.valid"
to = "dedupe.charge"
[[edges]]
from = "dedupe.fresh"
to = "branch.charge"
# Fan-out: capture at the provider and book the ledger entry.
[[edges]]
from = "branch.authorized"
to = ["capture.charge", "ledger.entry"]
[expose]
in = { charge = "charge.created" }
out = { captured = "capture.captured", booked = "ledger.booked" }
[supervision]
strategy = "rest_for_one"
max_restarts = 3
max_seconds = 60
[deploy]
concurrency = { capture = 1, ledger = 1 }
06
One node. One responsibility.
The kind describes its role. The capability declares its reach.
validate
Checks amount, currency, and shape. Pure and deterministic.
dedupe
Looks up the idempotency key so a retried request can't double-charge.
branch
Routes on charge state — only authorized charges proceed to capture.
capture
Captures at the payment provider. The outbound call is a scoped capability.
ledger
Writes the double-entry ledger row. Runs alongside capture under supervision.
