A pure transform. One message in, one out — same input, same output, no side effects. Its center dot marks the pure core.
kind = "transform"
Back to bloccs
A small vocabulary.
THE NOTATION / 12 PRIMITIVES
A small vocabulary.
Whole systems.
One shape, twelve behaviors. Typed ports on the edges. Declared effects on the shell. A visual language you can read before you read the code.
Explore the library
NOTATION / ISOMETRIC STUDY01 — 12
Node
1 in · 1 out · pure
kind = "transform"
Select a primitive below to inspect its form.
Hexagon the node
Lateral dots typed ports
Top pip + inner edge declared effect
01
5 primitives
The building blocks
Transform a message, reach the outside world, or compose a whole network.
Inspect
Inspect
Effectful node
A transform that declares a capability. It may reach the outside world — but only what it declares. The top pip and doubled edge mark that capability boundary.
[effects]
Inspect
Source
An entry point. No input — it produces messages into the graph and declares its ingress effect. Its right-hand port is the start of the flow.
kind = "source"
Inspect

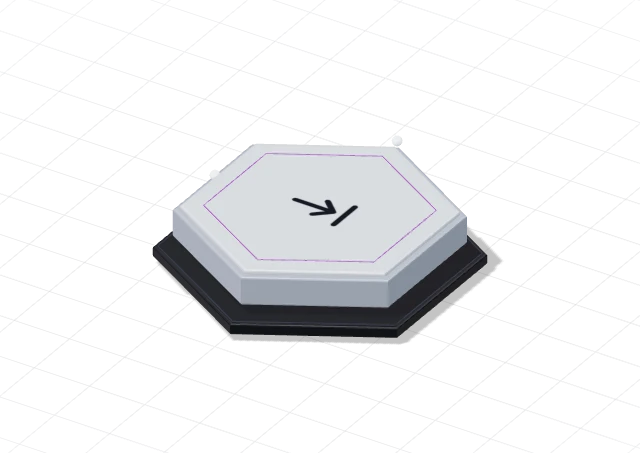

Sink
An exit point. Messages terminate here; it declares the egress effect that writes them out. Its left-hand port is where the flow ends.
kind = "sink"
Inspect
Subgraph
A whole network as one node — a used manifest, flattened into the graph. The nested hexagon represents that composition.
use = "net.bloccs"
02
7 primitives
The flow controls
Route, combine, filter, and pace the messages moving between your nodes.
Inspect
Split
Conditional fan-out. One message in, routed to one of several outputs by a decision — each output port names a possible route.
kind = "router"
Inspect
Merge
Combines streams. Messages from several inputs share one output, without waiting for a partner.
fan-in edges
Inspect
Filter
Predicate drop. Messages that don't match are dropped; the rest pass through unchanged. The funnel marks the predicate boundary.
return :drop
Inspect
Join
Correlates by key. The first keyed message waits at the node until its partner arrives on the other input, then one combined result leaves.
[join]
Inspect

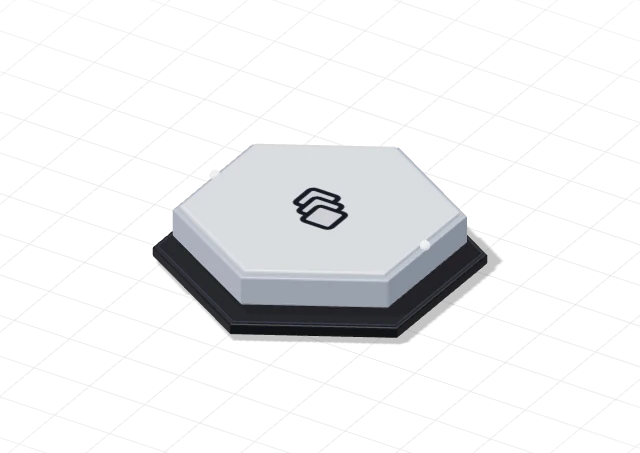

Batch
Groups messages and emits them as one batch, by size or timeout. The stacked glyph marks the grouped output.
[batch] size = N
Inspect
Throttle
Rate limit. Smooths bursts into a steady, even output — the valve marks where the rate is controlled.
[rate]
Inspect
Delay
Time shift. Holds each message for a set duration, then releases it. The clock marks that timing boundary.
delay_ms = N
A VIEW OF THE PROGRAM
The notation explains it.
The manifest defines it.
These shapes are a view of real bloccs constructs. The .bloccs
file remains the source of truth: node kinds, typed connections, and declared capabilities.
Give your next idea a shape.
Declare the graph. Check the contracts. Let the BEAM run it.
